BVA Hydraulics

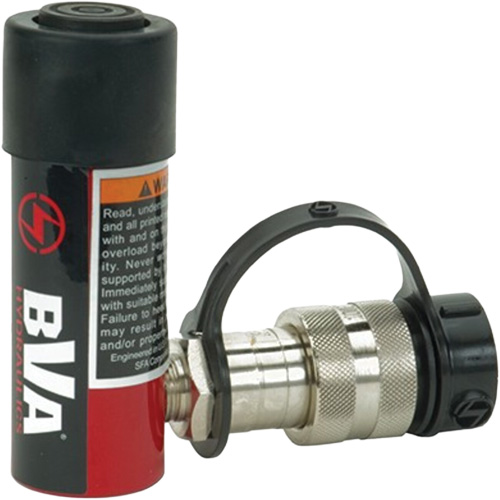

General Hydraulic Cylinder, 1" Stroke, 5 Ton(s) Capacity, 10000 PSI

Model: FLV029

Mfr. No.: H0501

  • General Hydraulic Cylinder, 1" Stroke, 5 Ton(s) Capacity, 10000 PSI Infinity Industrial Services Inc.

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$499.00 / Each

Ships in 7-10 days

Shipping times are based on information available at the time of order and are subject to change.

Capacity

5 Ton(s)

Collapsed Height

4-29/50"

Extended Height

5-29/50"

Operating Pressure

10000 PSI

Stroke Length

1"

Material

Steel

Cylinder Bore Size

1.13"

Outside Diameter

1.5"

Rod Diameter

1"

Saddle Diameter

0.98"

Collar Thread

1-1/2”-16

Collar Thread Length

1.1"

Rod Internal Thread

3/4”-16 UNF

Rod Thread Length

0.63"

Country Of Origin

Taiwan

  • Manufactured in a solid one-piece alloy steel body, using polyurethane U-cup seals to provide a sure seal and longer life
  • Standard hard chrome plated piston rod protects against corrosion and damage
  • One-piece aluminum alloy bearing protects against cylinder wall damage
  • Collar threads and base mounting holes are for fixturing
  • Equipped with CH38F high-flow coupler with a dust cap for better protection
