Dwyer

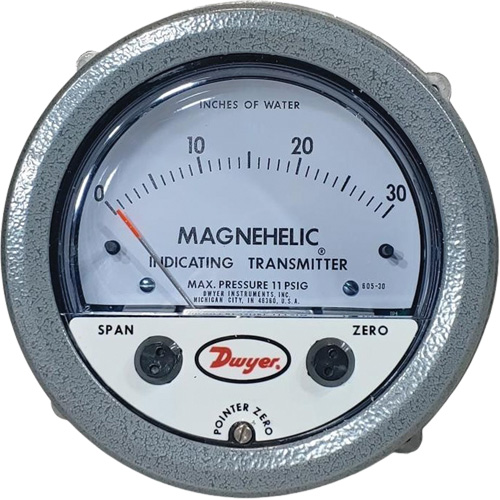

605 Series Magnehelic® Differential Pressure Gauge & Indicating Transmitter, 4" , 0 - 30 in. w.c., Panel Mount, Analogue

Model: HC867

Mfr. No.: 605-30

  • 605 Series Magnehelic® Differential Pressure Gauge & Indicating Transmitter, 4" , 0 - 30 in. w.c., Panel Mount, Analogue Infinity Industrial Services Inc.

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$802.00 / Each

Ships in 3-4 weeks

Shipping times are based on information available at the time of order and are subject to change.

Dial Diameter

4"

Pressure Range

0 - 30 in. w.c.

Connection

Panel Mount

Dial Type

Analogue

Maximum Pressure

11 psi

Gauge Accuracy

+/-2%

Gauge Stability

±1% F.S./yr.

Gauge Pressure Limits

Transmitter Accuracy

+/-0.5%

Connection Thread

1/8" NPT Female

Gauge Certification(s)

CE

Temperature Limits

20 to 120°F (-6.67 to 48.9°C)

Transmitter Compensated Temperature Range

32 to 120°F (0 to 48.9°C)

  • Provides for both visual monitoring and electronic control of very low differential pressure
  • Ideal for control applications in building HVAC systems where local indication is desired during routine maintenance checks or necessary when troubleshooting the system
  • Easy-to-read dial gauge is complimented by the two-wire, 4-20 mA control signal utilizing the time-proven Dwyer® Magnehelic® gauge mechanical design and Series 600 transmitter technology
  • The two-wire design with terminal strip on the rear simplifies connection in any 4-20 mA control loop powered by a 10-35 VDC supply
  • Services air and non-combustible, compatible gases
