FTI Finish Thompson Inc.

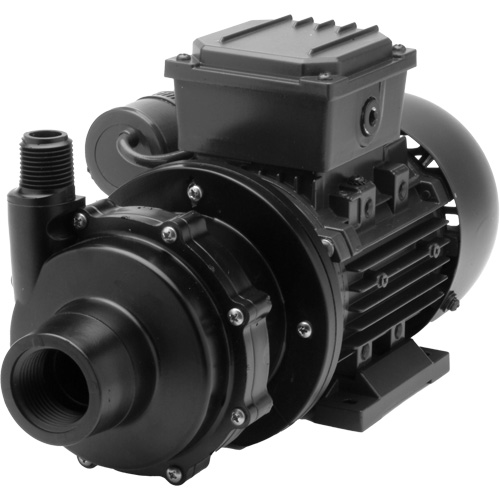

Magnetic Drive Pump with PTFE Bushing

Model: PUN281

Mfr. No.: DB3V-T-M612

  • Magnetic Drive Pump with PTFE Bushing Infinity Industrial Services Inc.

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$1,088.00 / Each

Ships in 2-3 weeks

Shipping times are based on information available at the time of order and are subject to change.

Manufacturer's Warranty

  • 5 Years

Intake Size

1"

Discharge Port Size

1/2"

Motor

1/8 HP

Suction Head

20'

Connection Type

NPT

Impeller Size

2.3"

Magnet Type

6-Pole

Material

PVDF

Max. Flow

15 GPM

Motor Frame Size

IEC 56-B14

Phase

1 Ph

Voltage

115

Country Of Origin

United States

  • High operating efficiency
  • Powerful neodymium magnets
  • Close-coupled design
  • Threaded NPT connections
  • Horizontal or vertical installation
  • Back pullout design
  • Mounts to IEC 56, 63, 71 B14 motor frames
  • Easy set, measurement free drive
  • CE certified
  • Working pressure to 60 psi (4.1 bar)
  • Specific gravity up to 1.8
  • Viscosity up to 50 cP
